*Sold as each not in pairs.

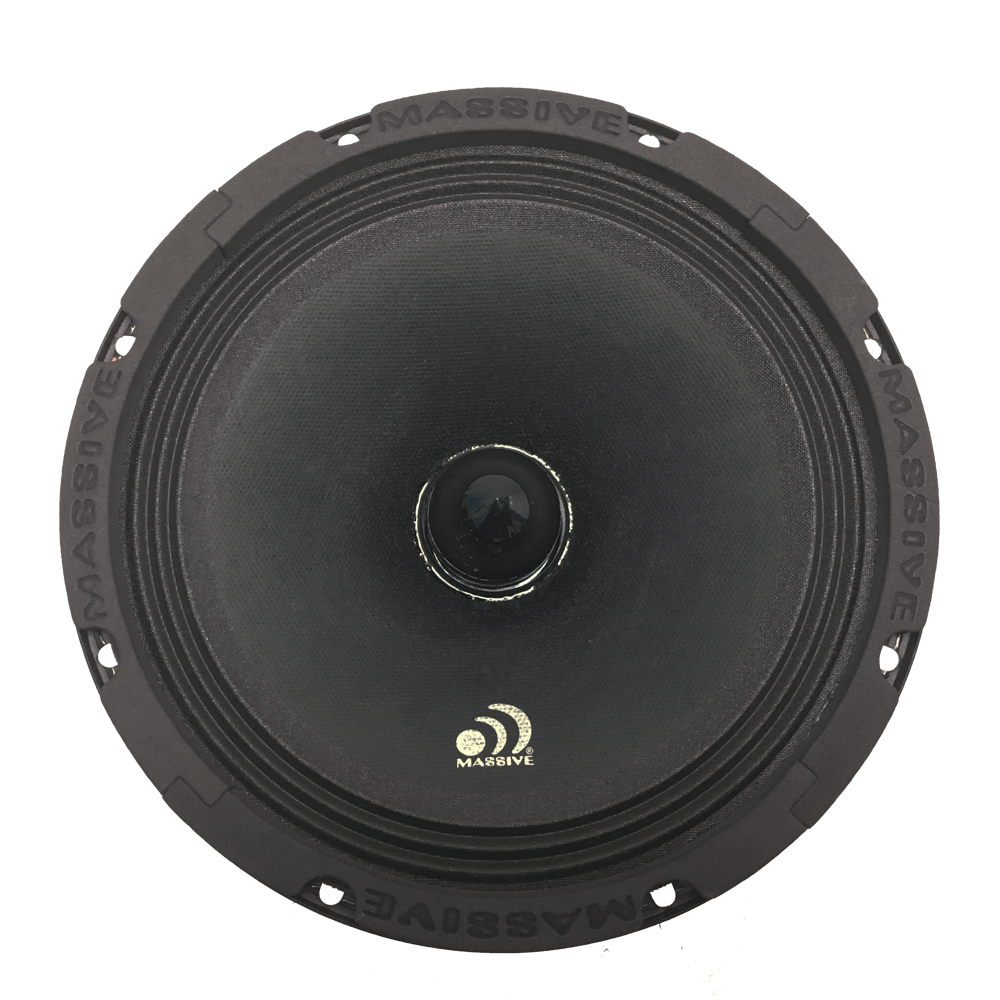

Massive Audio's new Professional Grade- High Efficiency, High Power Mid-Range Speaker designs are a result of years of experience, research and dedication to high professional audio products. Our "M Series" line of are built to deliver the best quality sound at price points that are sure to make any enthusiast ecstatic. Applications include everything from PA, DJ and Car Audio installations.
"On a Stage or in a Car Massive Drives it Home!"
Manuals & Downloads
FEATURES
- 40oz Ferrite Magnet
- Copper Voice Coil
- Kapton Coil Former
- Vented and Extended Core
- Pressed Steel Basket
- Paper Cone
- Cloth Cone Edge
- Phase Plug Dust Cap
SPECIFICATIONS
| Nominal Basket Diameter | 8.2", 210mm |
| Nominal Impedance | 8 Ohm |
| RMS Watts | 150 W |
| Music Program | 280 W |
| Resonance | 100Hz |
| Usable Frequency Range | 100Hz-7KHz |
| Sensitivity | 96dB |
| Magnet Weight | 40 oz |
| Voice Coil Diameter | 1.5", 38.5mm |
| Resonant Frequency (fs) | 100Hz |
| DC Resistance (Re) | 5.2 |
| Overall Diameter | 8.2", 210mm |
| Baffle Hole Diameter | 7.24",184mm |
| Mounting Holes Diameter | 0.20" x 0.33",5.2 x 8.6mm |
| Mounting Holes | B.C.D. 7.8",198mm |
| Depth | 3.62", 92mm |
| Coil Construction | Copper Voice Coil |
| Coil Former | Kapton |
| Magnet Composition | Ferrite Magnet |
| Basket Materials | Pressed Steel |
| Cone Composition | Paper Cone |
| Cone Edge | Composition Cloth Cone Edge |
| Dust Cap Composition | Phase plug |
