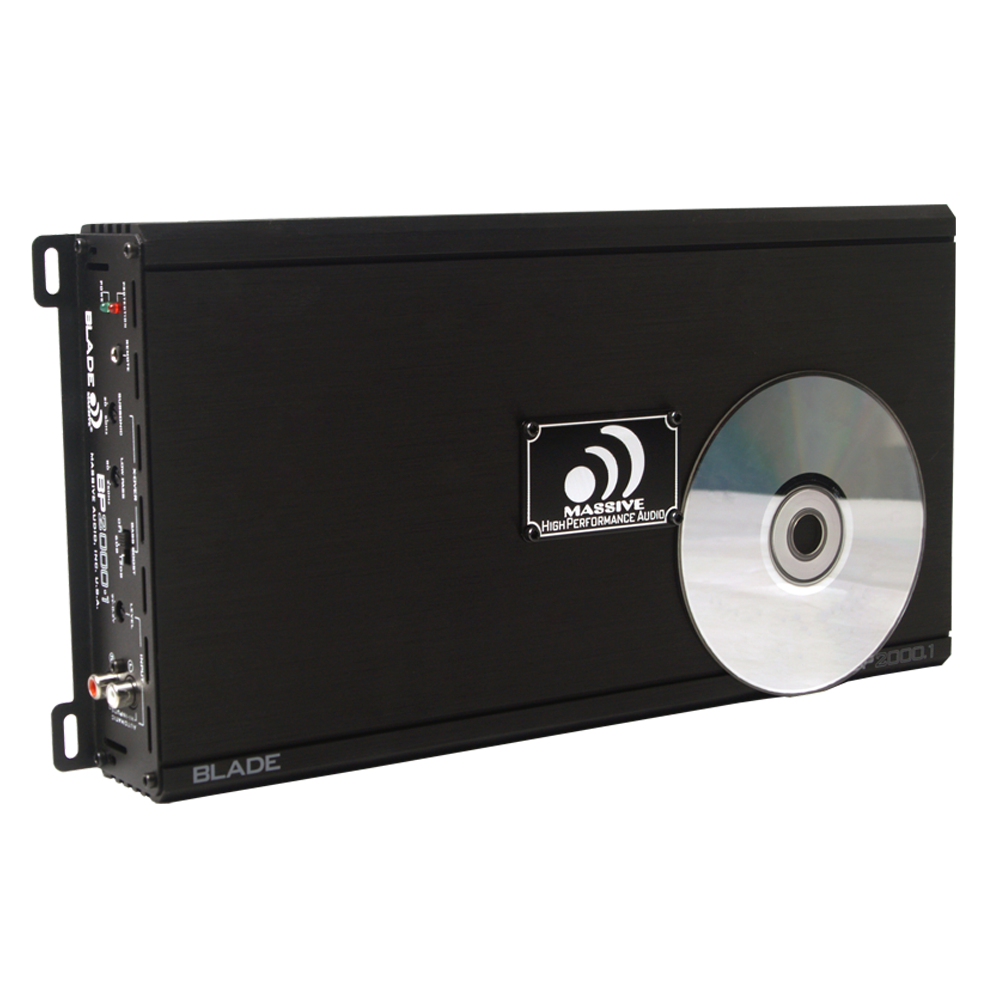

The BLADE BP Series Amplifiers are designed with our “Live, Loud and Play Hard” motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. The BP2000.1 is a Class “D” amplifier that can play down to 1 Ohm minimum. All Blade “BP” amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant. This ensures that no competition can stand up to the BLADE BP when it comes to features, performance and value.
Manuals & Downloads
FEATURES
- Built-In OEM Line Converter
- 1 Ohm Stable Design
- Class Full Range Digital
- Mil Spec PCB with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High Grade Switching Devices
- Built-In Auto Sensing Turn On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Level Inputs)
- 0dB ~ 12dB Bass Boost
- Next Generation Advanced 5 Way Protection Circuitry
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS
| Peak Output Power @ 14.4V | 2000W x 1 |
| 1 Ohm RMS | 1000W x 1 |
| 2 Ohm RMS | 900W x 1 |
| 4 Ohm RMS | 500W x 1 |
| 4 Ohm Bridged | N/A |
| Input Level | 0.2~9.0v |
| Freq. Response | 15Hz~250Hz |
| THD at 4 Ohm Load 30% Rated Power | <0.1% |
| S/N Ratio | >90dB |
| Bass Boost | 0~6dB/12dB (45Hz) |
| Minimum Load | 1 Ohm Mono |
| Gain Remote | (Optional) |
| Dimension | 2"H x 7.1"W x 13.4"L |
