Description
Features Include
- 1.4" exit, lightweight compression driver featuring neodymium magnet and a 2.4" titanium diaphraghm
- 70Wrms (AES standard) power handling and 106.5dB sensitivity
- Patented phase plug design method suppresses cavity resonances at higher frequencies
- Titanium diaphragm, deep drawn to increase stiffness and reduce distortion
- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
- Rolled polyimide surround improves stiffness control, further lowering distortion
- Curved coherent wavefront, optimized for horn loading
General Specifications
Power rating: 70Wrms
Continuous power rating: 140W
Nominal impedance: 8Ω
Sensitivity: 106.5dB

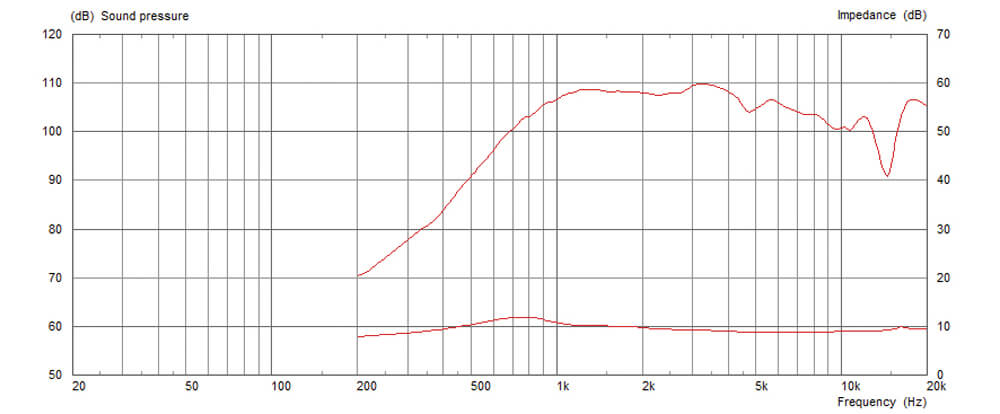

Frequency range: 800-20,000Hz
Recommended min. crossover (12dB/oct): 1200Hz
Voice coil diameter: 60mm/2.4in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Neodymium
Diaphragm material: Titanium
Surround material: Polyimide
Mounting Information
Maximum width: 116mm/4.6in
Depth: 56mm/2.2in
Weight: 1.5kg/3.3lb
Fitting: Flange (4 x M6 holes on 102mm/4in PCD)
Throat exit: 35.6mm/1.4in
