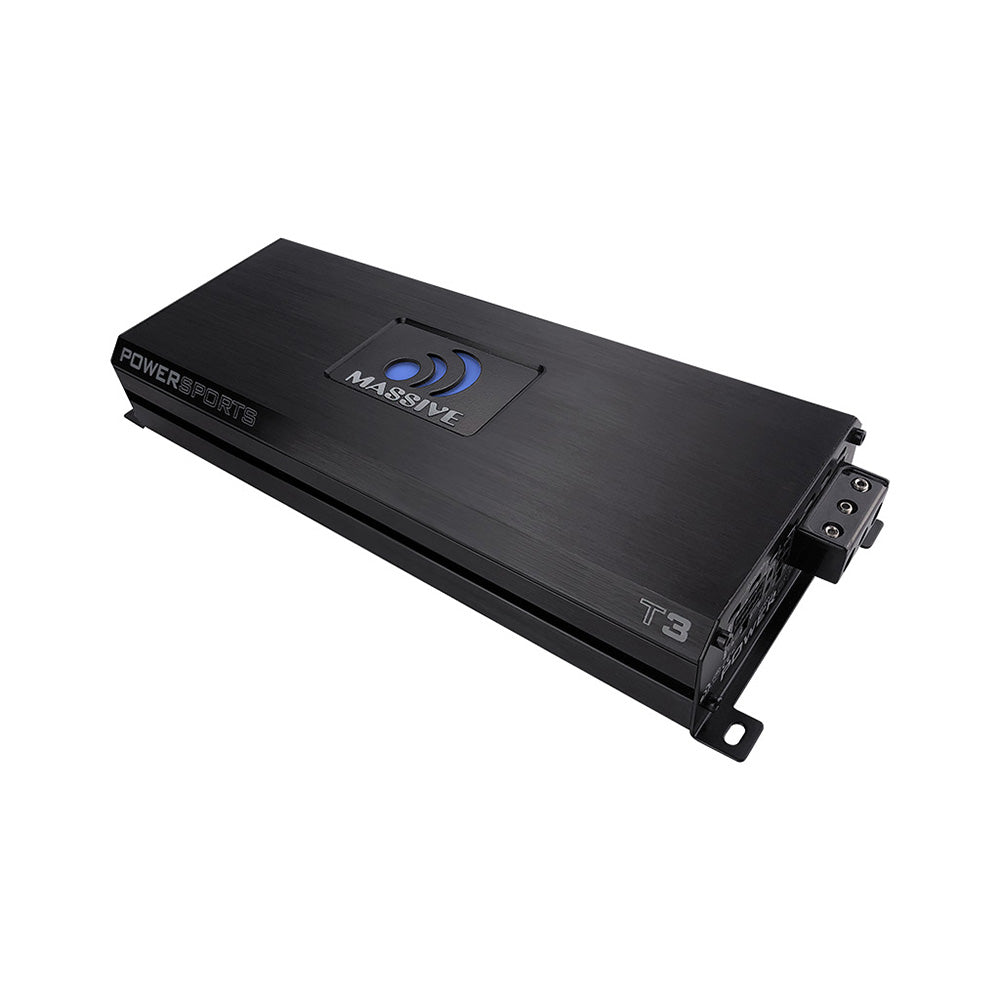

Massive Audio’s TRIDENT Series Amplifiers come dressed for action in their black anodized brushed aluminum heat-sink, punctuated with stainless-steel end caps and a blue backlit logo. Its dimensions are 4.25” W x 1.6” H x 11.5" L, making it both Powerful and diminutive. This 1 Ω stable Mono Block is rated at 1400 Watts X 1Ω and is Water Resistant as a result of its Dura-Coated 320°F Epoxy PCB.
Inside you will find a 4 Layer PCB of Class D design including Surface Mounted parts. Like all Massive Audio Amplifiers, you’ll find our advanced 5 Way Protection Circuitry and a full array of adjustments to adapt to any system configuration. One example is the -3 ~ + 12DB Variable Bass Boost from 40 Hz - 100 Hz.
The built-in OEM line converter can handle signals up to 9 volts to activate the Auto Turn On feature eliminating the need for a separate turn on wire. When this ATO is used the 12 volt input converts to a 12 volt output that can activate additional system devices when necessary. The T3 also has a "Docking Port" to plug in an optional or RCT. An optional is available for purchase.
Manuals & Downloads
FEATURES
- Extreme Power in a Mini Compact Footprint
- Conformal Coated PC Board to Resist Moisture, Dust and Extreme Heat
- 1 Ohm Stable Design
- 4 Layers PCB design with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High Grade Switching Devices
- Built-in Auto Sensing Turn On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Inputs)
- -3 ~ + 12DB Variable Bass Boost 40 Hz - 100 Hz
- Advanced 5 Way Protection Circuitry
- RCLX ~ Railcap Booster (Optional)
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS
| Peak Output Power @ 14.4V | 2800W Max Mono |
| 1 Ohm RMS | 1400w X 1 |
| 2 Ohm RMS | 700W x 1 |
| 4 Ohm RMS | 450w x 1 |
| 4 Ohm Bridged | N/A |
| Input Level | 0.2~9.0v |
| Freq. Response | 10Hz~150KHz |
| THD at 4 Ohm Load 30% Rated Power | <0.03% |
| S/N Ratio | >85dB |
| BassBoost | 40Hz~100Hz |
| Minimum Load | 1 Ohm Mono |
| Gain Remote | (Optional) |
| Dimension | 1.6"H x 4.25"W x 11.50"L |
