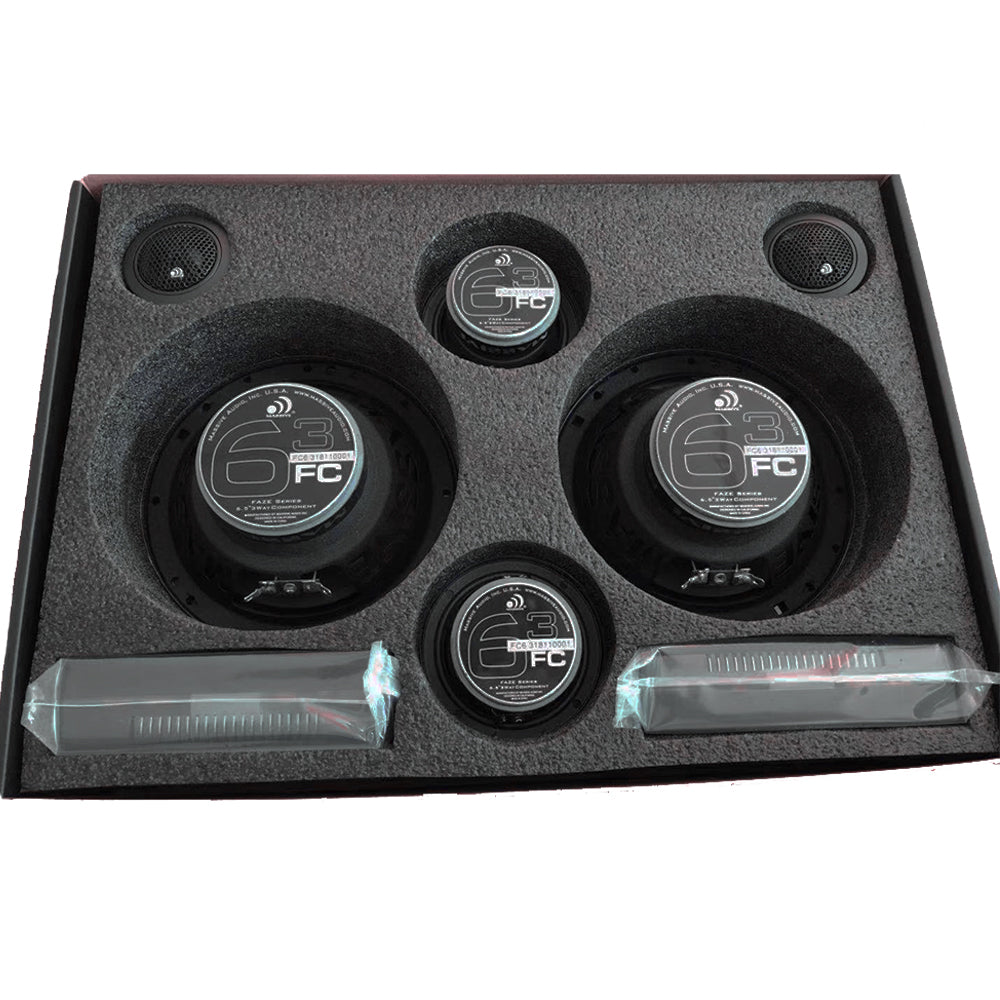

The 12dB Linkwitz–Riley X Over blends highs and lows together with a balance not obtained by its competition. This 3-Way Kit comes with a 3" Dynamic Audiophile Mid-range + Two large Ferro Fluid Cooled 25mm soft silk dome tweeters that come with multiple mounting options helping the FC6.3 extend its playback up to 20K with a precise balance between power handling, frequency response and location.
Manuals & Downloads
FEATURES
- Heavy Gauge Steel Basket with Thick Powder Coating

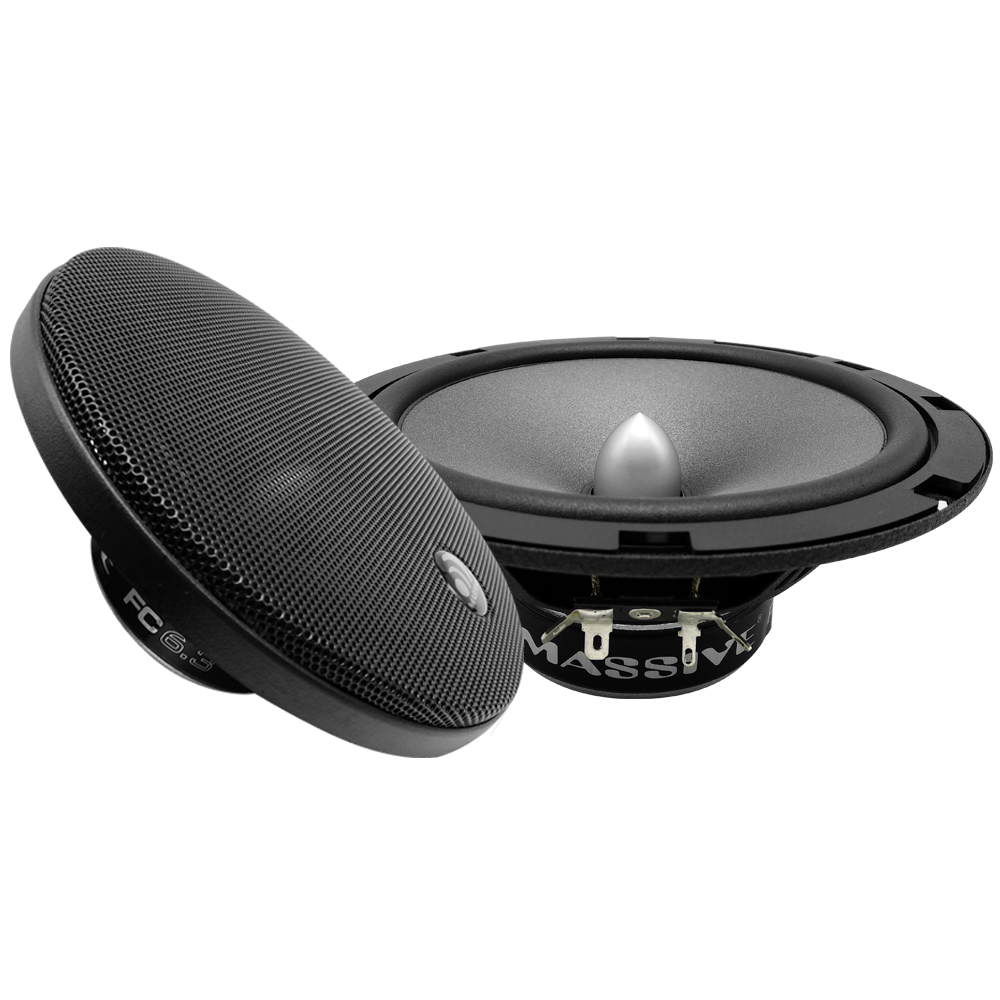

- 6.5 Inch Drivers with High-Energy Y30 Magnets

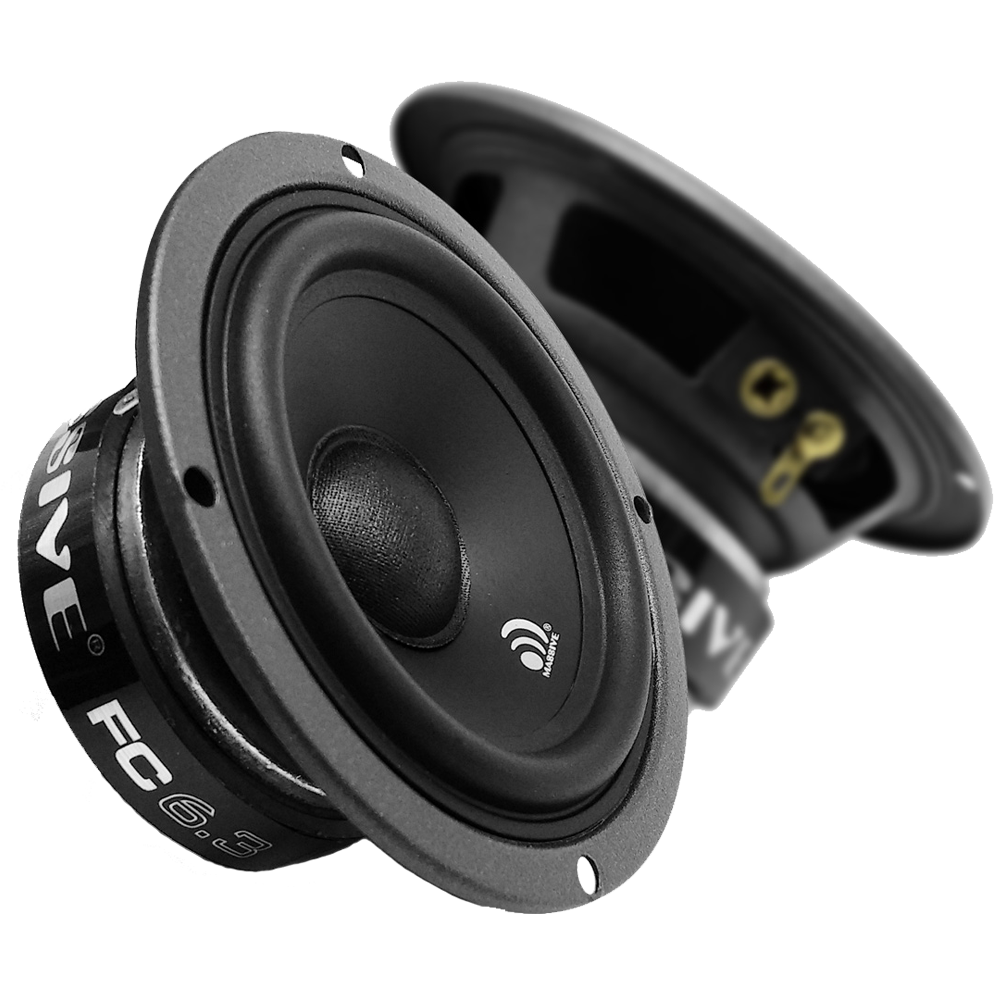

- 3" Dynamic Audiophile Mid-Range Speaker
- 3" Speaker Protective Grills Included
- With Ferro Fluid Cooled V.C.

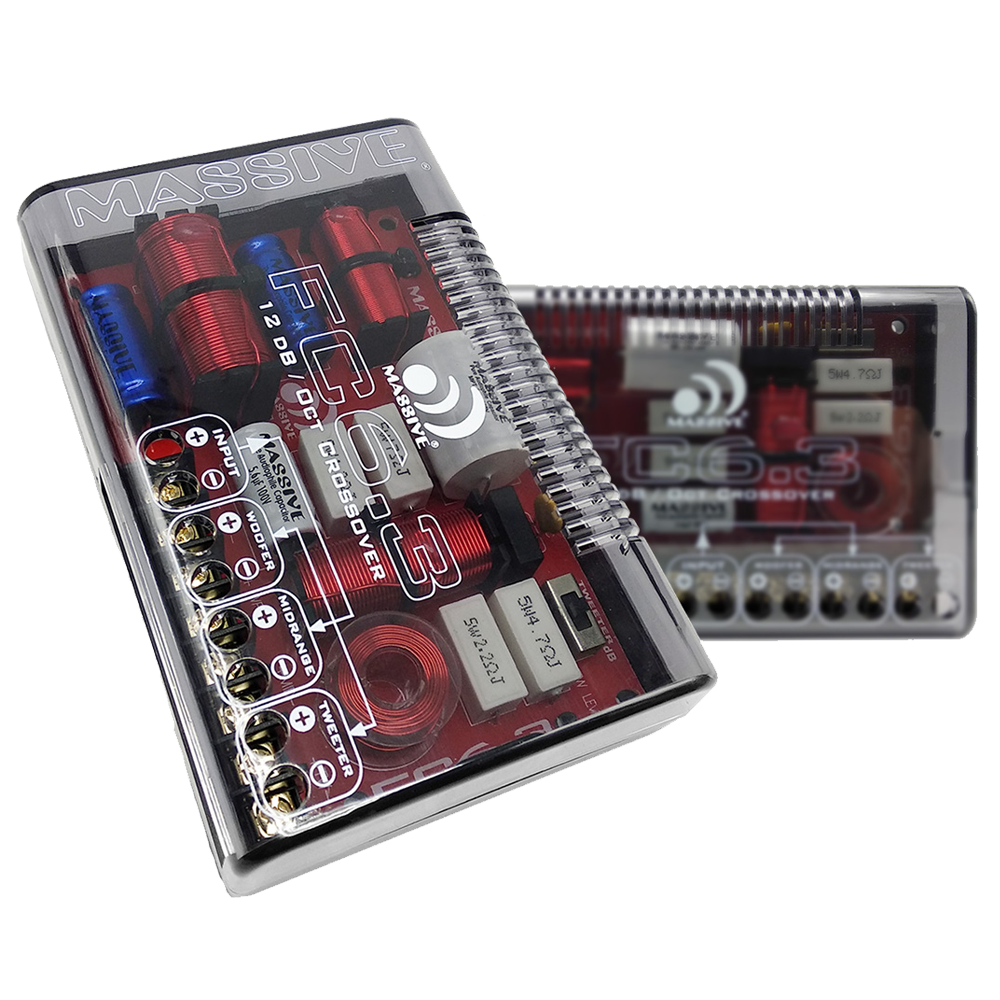

- Custom External 12dB Linkwitz–Riley Crossovers
- MASSIVE Punched Logo
- High Sensitivity And Accurate Sound Reproduction
- Custom Designed Pole Piece for Low Distortion and Sound Quality
- Two Piece Custom Paint-able Metal Grills for 6.5"
- Rugged Construction to Withstand Harsh Mobile Environment
- Woven Fiber Paper Cone With Butyl Rubber Surround
- Fully Isolated Tinsel Leads to Eliminate Cross-talk
- High Quality Cloth Spider with Polyester Fiber
- 1” High Temperature KSV Voice Coil
SPECIFICATIONS

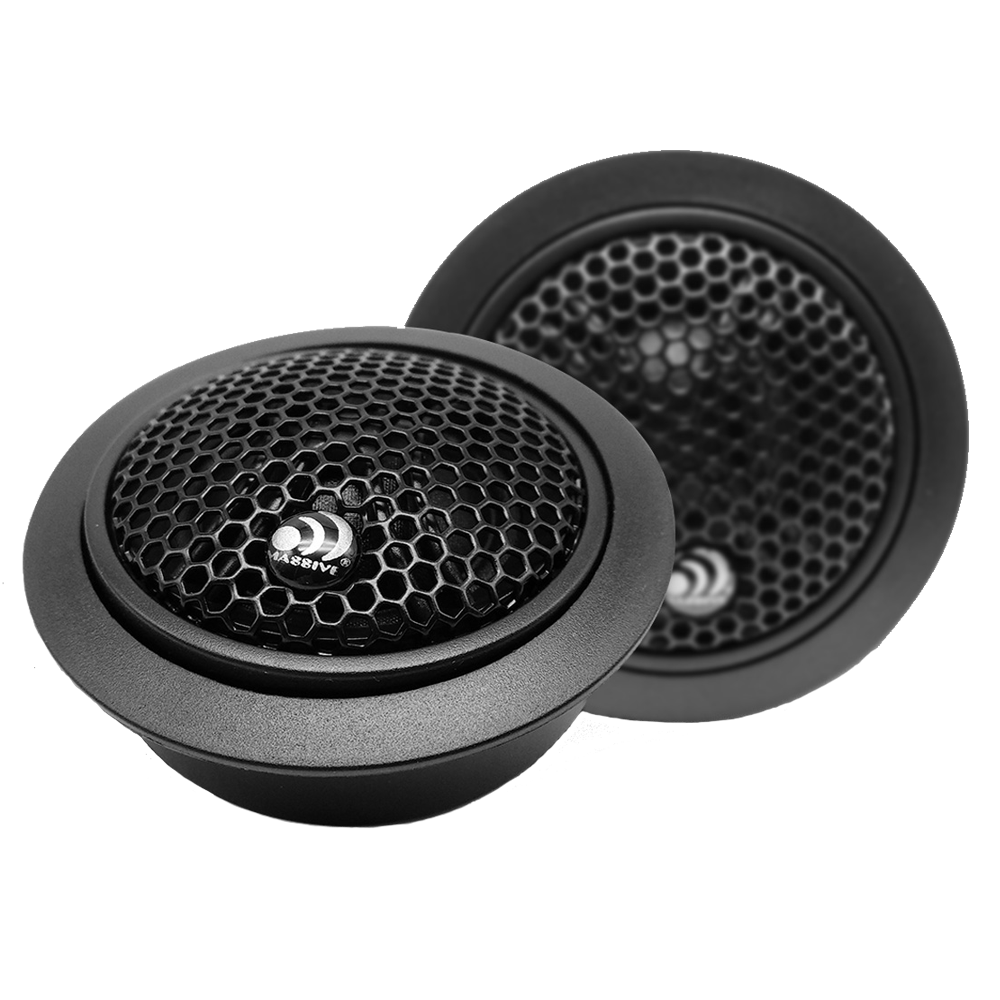

| Tweeter | 25mm Silk Diaphragm Tweeter Ferro Fluid (Pair) |
| Mid-Range | 3" Dynamic Audiophile Speaker (Pair) |
| Cone | Woven Fiber Paper Cone |
| Sensitivity | 93dB |
| Frequency | 50-20KHz |
| Crossover Points | 6.5" & 3" ~ 700Hz / Tweeter ~ 2KHz |
| RMS Power | 150 Watts |
| Peak Power | 600 watts |
| Impedance | 4 Ohm |
| Mounting Depth | 6.5" = 2.40" / 3" = 1.53" / 25mm = 0.602" |
| Mounting Diameter | 6.5" = 5.64" / 3" = 2.71" / 25mm = 2.24" |
| Frame Diameter | 6.5" = 6.49" / 3" = 3.42" / 25mm = 2.24" |
