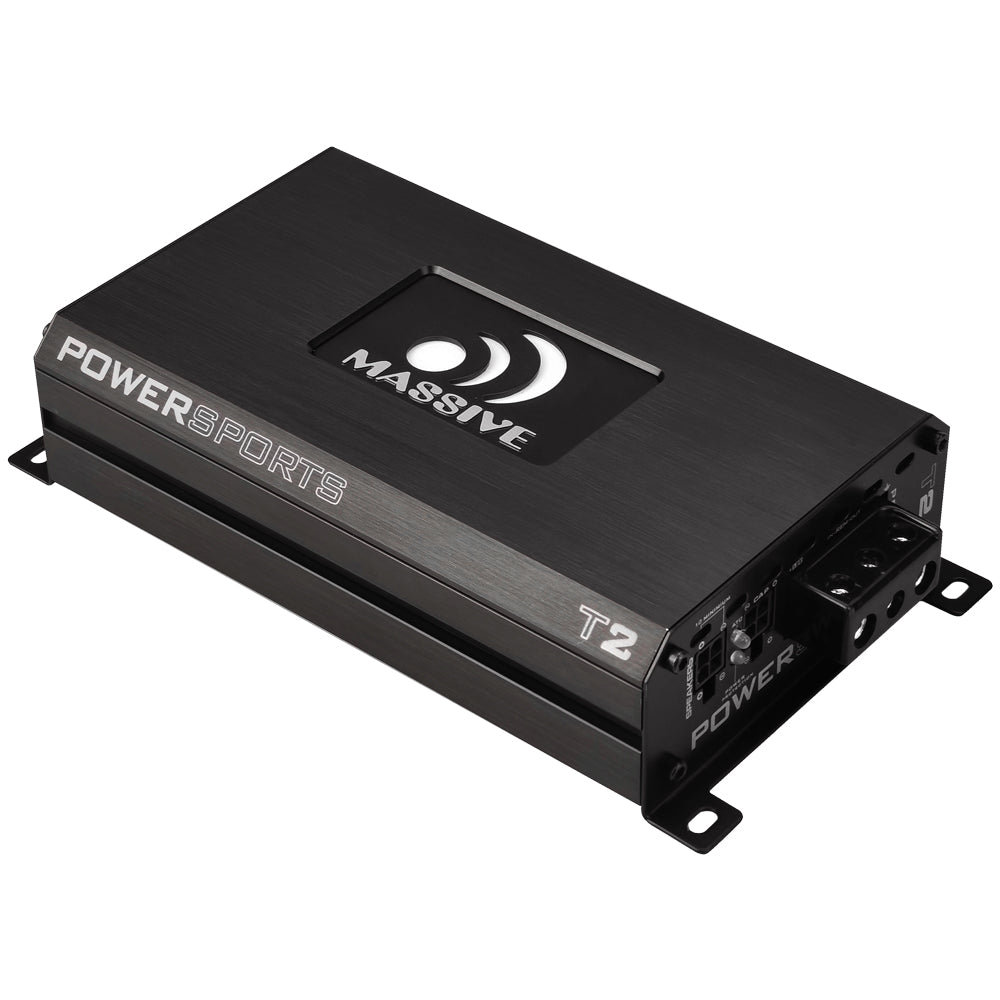

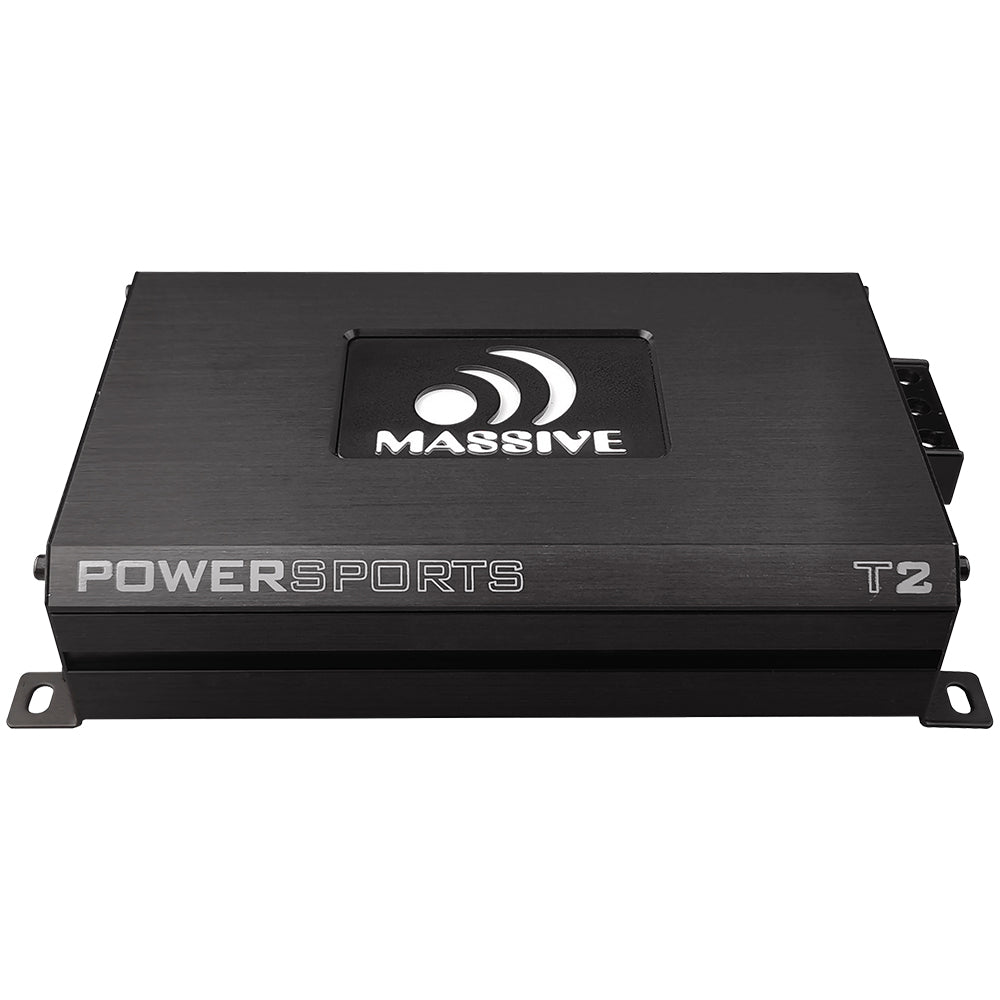

Massive Audio Trident Series Amplifiers come dressed in black anodized aluminum heat-sinks with stainless steel end plates and blue backlit logos.
Trident Series circuit boards are treated with Dura-Coated 320°F Epoxy for water resistance. Powerful at only 4.25” W x 1.6” H x 7.99 L. All models feature Full Range Hi Efficient Digital Platforms, Built-In OEM Line Converters with up to 9V In, (ATO) Auto Turn On (no turn 12V on wire needed when used) and 12V output (when ATO is used). Each model supports a "Docking Port" to plug in an optional or RCT. An optional is available for purchase.
Manuals & Downloads
FEATURES
- Extreme Power in a Mini Compact Footprint
- Conformal Dura-Coated 320°F Epoxy PC Boards to resist Moisture, Dust and Extreme Heat
- 1 Ohm Stable Design
- 4 Layers PCB design with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High Grade Switching Devices

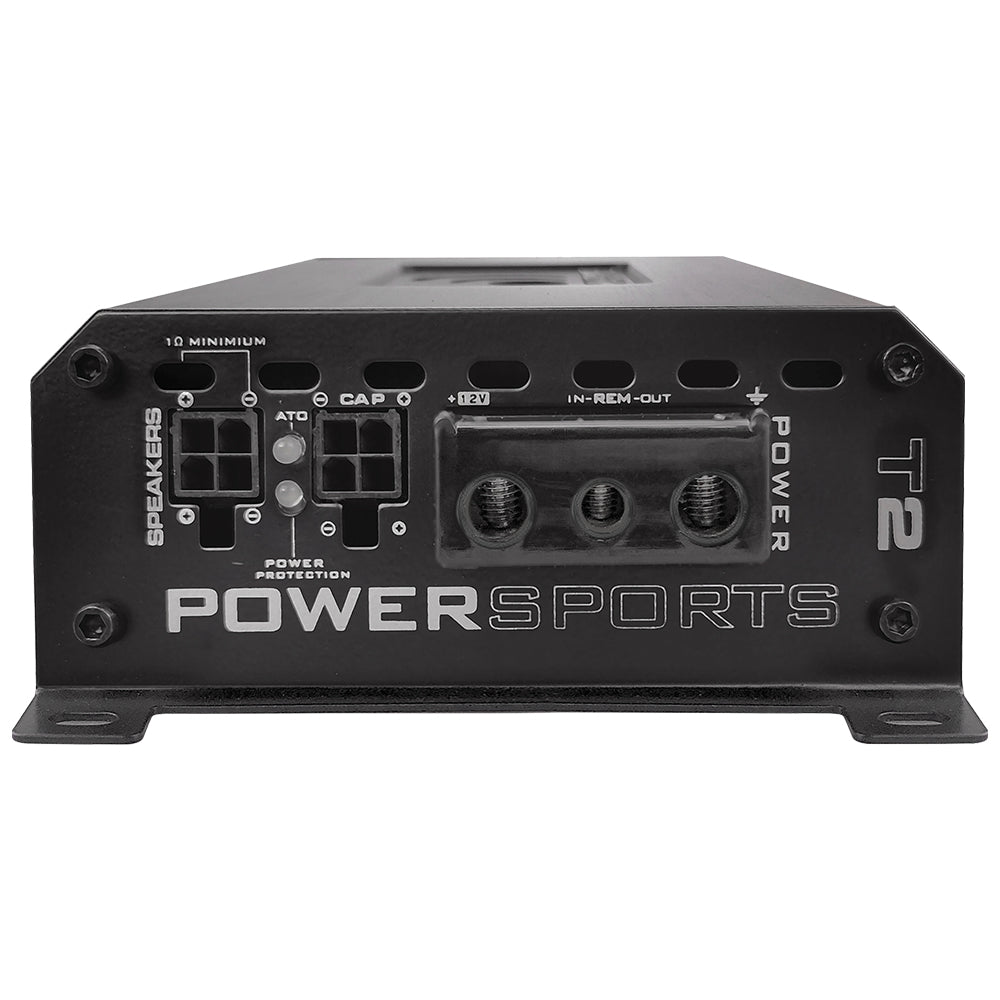

- Built-in Auto Sensing Turn On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Inputs)

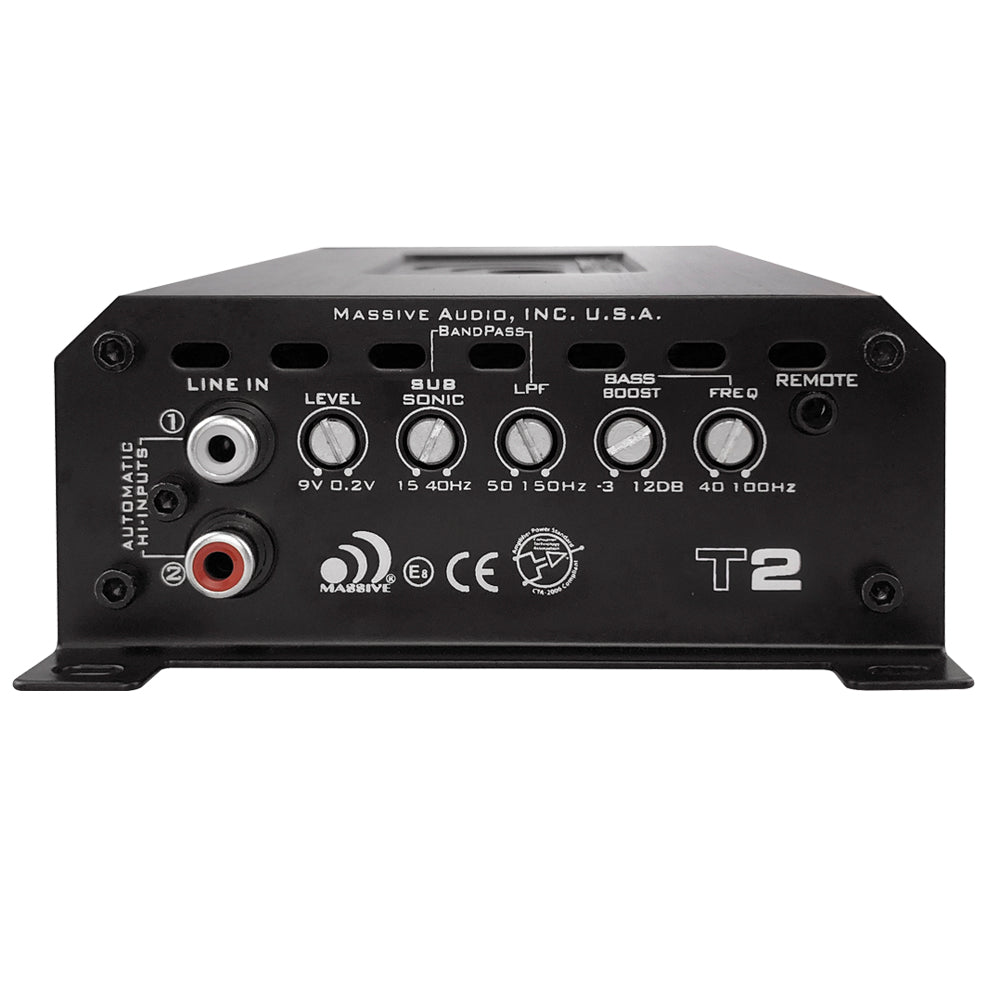

- -3 ~ + 12DB Variable Bass Boost 40 Hz - 100 Hz
- Advanced 5 Way Protection Circuitry
- RCLX ~ Railcap Booster (Optional)
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS
| Peak Output Power @ 14.4V | 1600W Max Mono |
| 1 Ohm RMS | 800w X 1 |
| 2 Ohm RMS | 400W x 1 |
| 4 Ohm RMS | 200W x 1 |
| 4 Ohm Bridged | N/A |
| Input Level | 0.2~9.0v |
| Freq. Response | 10Hz~150KHz |
| THD at 4 Ohm Load 30% Rated Power | <0.03% |
| S/N Ratio | >85dB |
| BassBoost | 40Hz~100Hz |
| Minimum Load | 1 Ohm Mono |
| Gain Remote | (Optional) |

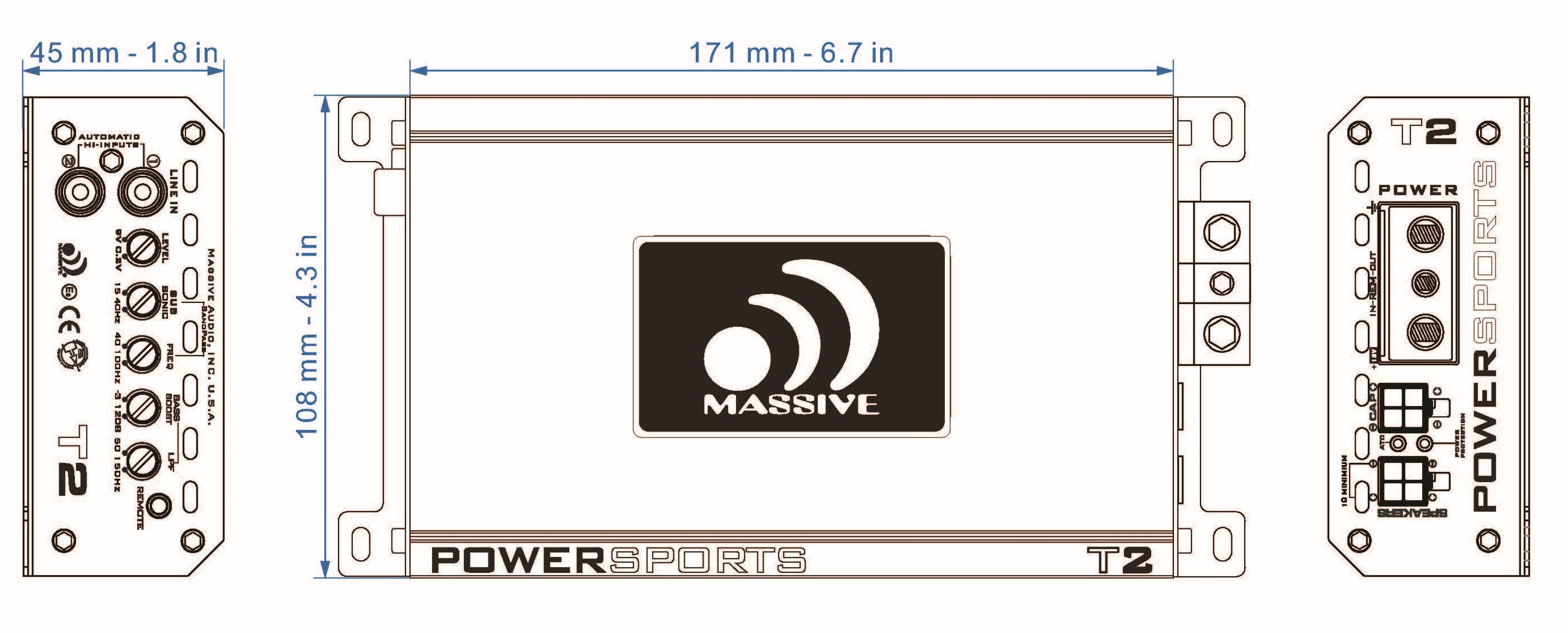

| Dimension | 1.6"H x 4.25"W x 7.99"L |
