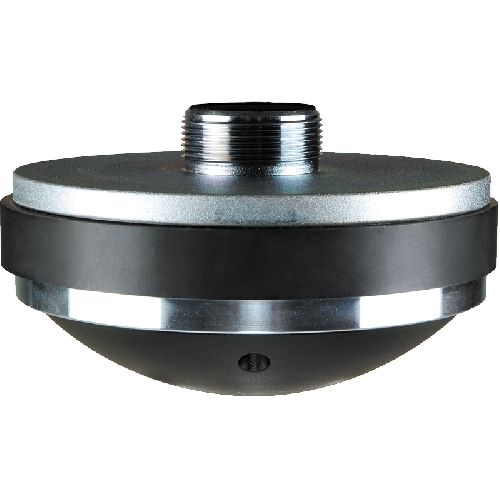

Celestion CDX1-1746 8 Ohm 40W Professional Audio Compression Driver - High Power Speaker Component for PA Systems & Studio Monitors (Model T5487)
$70.38
$127.97
Safe 45%
Celestion CDX1-1746 8 Ohm 40W Professional Audio Compression Driver - High Power Speaker Component for PA Systems & Studio Monitors (Model T5487)
$70.38
$127.97
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
12 people viewing this product right now!
SKU: 76189767
Guranteed safe checkout
Description
Features Include
- 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
- 40Wrms power handling (AES standard) and 110dB sensitivity
- Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) used to optimize both magnet assembly and acoustic design
General Specifications
Power rating: 40Wrms
Continuous power rating: 80W
Nominal impedance: 8Ω
Frequency range: 1200-20000Hz
Sensitivity: 110dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Mounting Information
Width: 120mm/4.7in
Depth: 56mm/2.2in
Weight: 2.3kg/5.1lb
Fitting: Screw (35mm/1.38in diameter)
Throat exit: 25.4mm/1in
Compatible Horns
H1-9040P, H1-7050 ‘No Bell’
