*Sold as each not in pairs.

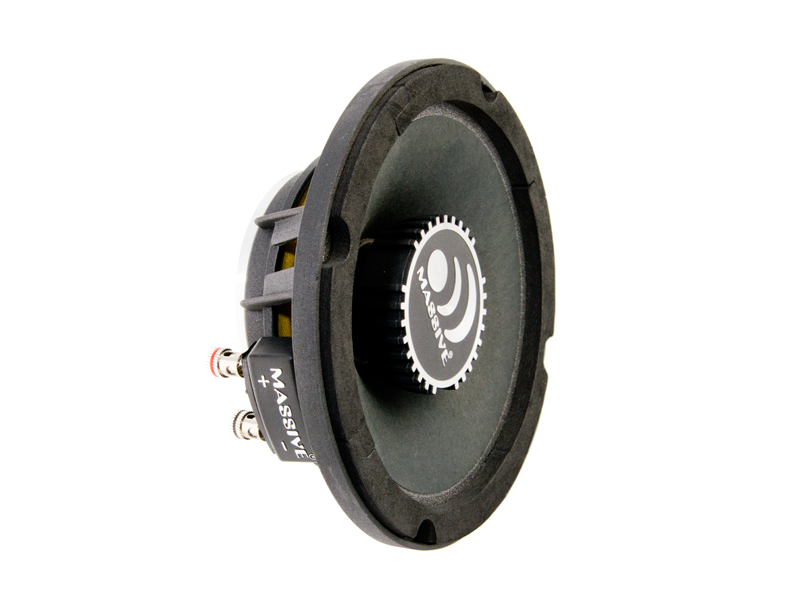

Massive Audio"s "MS Series" Shallow Mount along with its "M Series brethren" are all engineered in the USA to perform at perfectly selected mid-range frequencies with high sensitivity to enhance your listening experience. The "Slim Series" even feature a special aluminum heat sink / neodymium magnet on top of the speaker to help dissipate extra heat helping to keep the voice coils cooler for extended playing time! Slim Series deliver clean high output and will fit into most any restricted spaces courtesy of their high powered neodymium magnet assembly and low profile mounting for any limited space restrictions! Truly Unique, Definitely Massive!
"On a Stage or in a Car Massive Drives it Home!"
Manuals & Downloads
FEATURES
- Cast Aluminum Basket
- Kapton Coil Former
- 1.5" Copper Voice Coil
- Neodymium Magnet
- Vented & Extended Core
- Paper Cone
- Flat Foam Surround Cone Edge
- Aluminum Phase Plug / Heat Sink for Heat Dissipation
- Ultra Shallow 1.88" Mounting Depth
SPECIFICATIONS
| Nominal Basket Diameter | 6.5", 168mm |
| Nominal Impedance | 4 Ohms |
| RMS Watts | 130 W |
| Music Program | 300 W |
| Resonance | 270 Hz |
| Usable Frequency Range | 270Hz-10KHz |
| Sensitivity | 100 dB |
| Magnet Weight | 2.1 oz |
| Voice Coil Diameter | 1.5†38.5mm |
| Resonant Frequency (fs) | 242 Hz |
| DC Resistance (Re) | 2.6 |
| Mechanical Q (Qms) | 0.785 |
| Overall Diameter | 6.5", 168mm |
| Mounting Holes Diameter | 0.22", 5.5mm |
| Mounting Holes | B.C.D. 6.1",155mm |
| Depth | 1.88", 48mm |
| Coil Construction | Copper Voice Coil |
| Coil Former | Kapton Former |
| Magnet Composition | Inb Magnet |
| Cone Composition | Paper Cone |
| Cone Edge | Composition Flat Foam Surround |
