With a massive 100W power rating, this speaker sits perfectly in high-power or hybrid amplifiers. It voices a modern sound with a big bass presence.
Nominal diameter | 12", 305mm |
Power rating | 100Wrms |
Nominal impedance | 8Ω |
Sensitivity | 97dB |
Chassis type | Pressed steel |
Voice coil diameter | 2", 50.8mm |
Voice coil material | Round copper |
Magnet type | Ceramic |
Magnet weight | 35oz, 0.99kg |

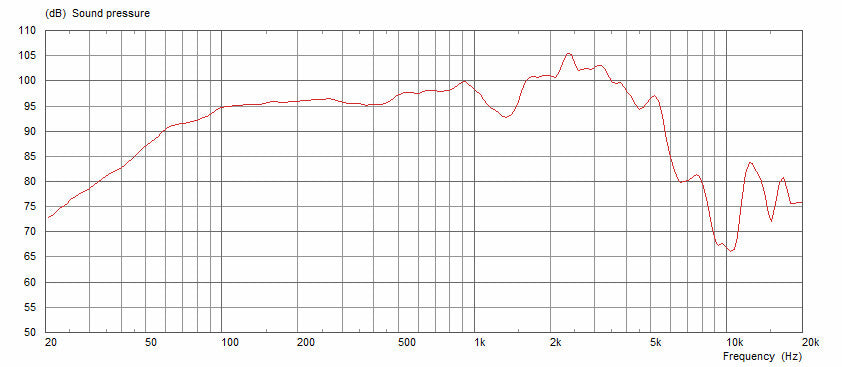

Frequency range | 80-5000Hz |
Resonance frequency, Fs | 86Hz |
DC resistance, Re | 7.4Ω |
Mounting Information |
Cut-out diameter | 11.1", 283mm |
Diameter | 12.2", 309mm |
Magnet structure diameter | 5.8", 148mm |
Mounting slot dimensions | 0.31", 7.9mm Ø |
Mounting slot PCD | 11.7", 297mm |
Number of mounting slots | 4 |
Overall depth | 4.9", 124mm |
Unit weight | 7.1lb, 3.2kg |
