The standard of rock and metal players since the mid 80s, the Vintage 30 is a powerhouse of versatility. This handy speaker is able to handle over twice the power of the that came before it. Used live and for recording with the likes of Slash, Steve Vai, Steve Stevens, Peter Frampton and many, many more.
A very revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Very commonly used in 2 x 12 and 4 x 12 Cabs.
Used in: Way too many cabs and combos to list
Similar Band Sound Style: Metallica, Guns N' Roses, Steve Vai, Peter Frampton
General Specifications
Nominal diameter | 12", 305mm |
Power rating | 60W |
Nominal impedance | 8Ω |
Sensitivity | 99dB |
Chassis type | Pressed steel |
Voice coil diameter | 1.75", 44.5mm |
Voice coil material | Round copper |
Magnet type | Ceramic |
Magnet weight | 50oz, 1.42kg |

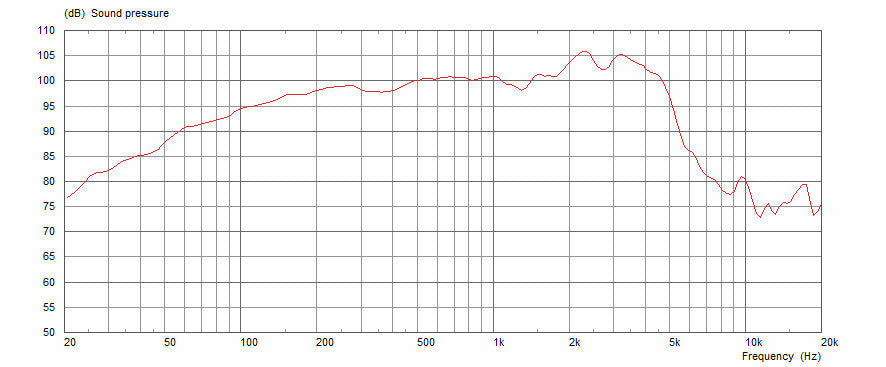

Frequency range | 70-5000Hz |
Resonance frequency, Fs | 75Hz |
DC resistance, Re | 7.3Ω |
Mounting Information |
Cut-out diameter | 11.1", 283mm |
| Diameter | 12.2", 309mm |
Magnet structure diameter | 6.1", 156mm |
Mounting slot dimensions | 0.31", 7.9mm Ø |
Mounting slot PCD | 11.7", 297mm |
Number of mounting slots | 4 |
Overall depth | 5.3", 135mm |
Unit weight | 10.4lb, 4.7kg |
