Features:

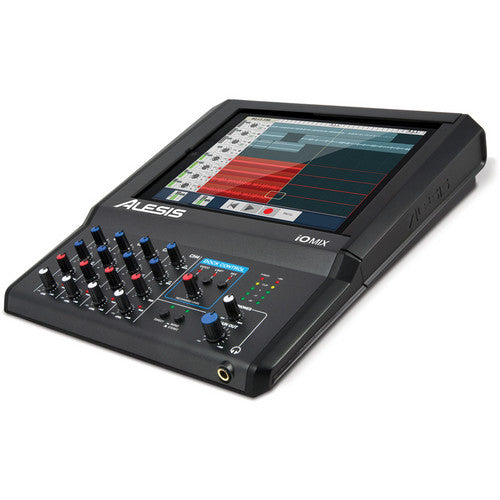

• Mixer/multi-channel interface for iPad
• Mix and record up to four channels, or a stereo mix into an iPad
• Works with microphones, instruments, speakers, headphones, video monitors and projectors
• Four combo XLR-1/4 Inch input channels, each with trim, channel gain, pan, and low and high EQ
• 48V phantom power for use with studio condenser microphones (switchable in pairs)
• Guitar-direct (DI) switch for guitar recording without an amp
• Direct Monitor switch for latency-free input monitoring while recording
• Balanced stereo 1/4 Inch outputs and 1/4 Inch headphone output with separate volume controls
• Switchable limiter for clip-free recordings

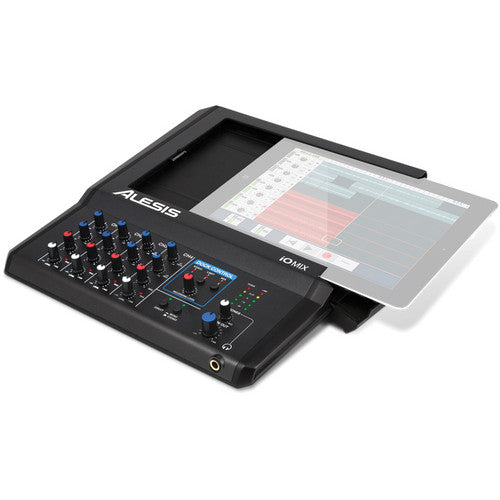

• Hinged door completely encloses and secures the iPad
• Core Audio-compliant - works with virtually any app in the App Store
• Video output for connection to TVs and projectors, perfect for presentations, meetings and VJs
• Mountable to a microphone stand using the Alesis Module Mount (sold separately)
• Complete routing and signal-management controls
• Power supply also charges the iPad

Specifications:

• Analog Inputs: 4 x Combo XLR/TS
• Other Connectors: 30-pin iPad
Analog Outputs:
• 2 x 1/4 Inch TRS Main
• 1 x 1/4 Inch TRS Headphone
Video Outputs:
• 1 x RCA Composite
• 1 x 4-pin Mini DIN S-Video
