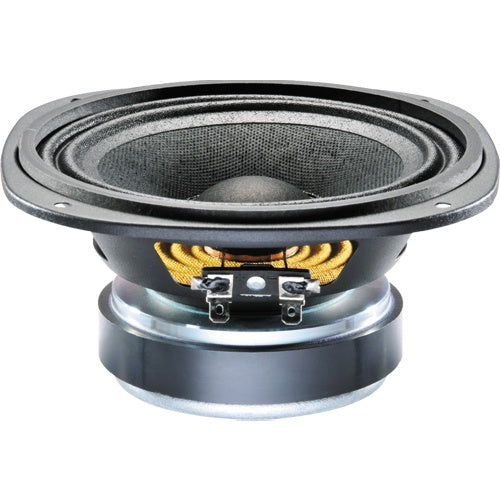

Celestion TF0510 8 Ohm 5" 30W Professional Audio Woofer Speaker - T5306 for Studio Monitors, PA Systems & Guitar Cabinets
$27.48
$49.97
Safe 45%
Celestion TF0510 8 Ohm 5" 30W Professional Audio Woofer Speaker - T5306 for Studio Monitors, PA Systems & Guitar Cabinets
$27.48
$49.97
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
9 people viewing this product right now!
SKU: 42976422
Guranteed safe checkout
Description
Features Include
- Multi-purpose 5" drive unit delivering clear bass and mid frequencies
- Provides 91dB sensitivity and 30Wrms (AES standard) power handling
- 1" high temperature copper voice coil wound on polyimide former for increased reliability
- Impressive extended frequency range
- Ideal for use in multiple speaker systems: as LF driver in 2-way systems, as MF driver in 3-way systems
General Specifications
Nominal diameter: 127mm/5in
Power rating: 30Wrms
Continuous power rating: 60W
EIA power rating: 50W
Nominal impedance: 8Ω
Sensitivity: 91dB
Frequency range: 130-8,000Hz
Voice coil diameter: 25mm/1in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.37kg/13oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax: 1.1mm/0.04in
Gap depth: 5mm/0.20in
Voice coil winding width: 7.3mm/0.29in
Small Signal Parameters
D: 0.10m/3.94in
Fs: 128.1Hz
Mms: 7.02g/0.25oz
Qms: 2.376
Qes: 0.768
Mmd: 5.3g/0.187oz
Qts: 0.6580
Re: 6.32Ω
Vas: 7.38lt/0.26ft3
BI: 6.82Tm
Cms: 0.22mm/N
Rms: 2.38kg/s
Le (at 1kHz): 0.33mH
Mounting Information
Overall diameter: 136 x 151mm/5.35in x 5.94in
Overall depth: 68mm/2.68in
Cut-out diameter: 117mm/4.61in
Mounting slot dimensions: Ø 4.5mm/0.18in
Number of mounting slots: 4
Mounting PCD range: 140mm/5.51in
Unit weight: 1.0kg/2.2lb
