Features:

Subwoofer Features:

• 12" 4 Ohm XED Series Subwoofer
• Power Handling:
  • Peak: 1000 watts
  • RMS: 150 watts
• Parabolic Poly Cone
• Single Stitched High Roll Surround
• Bumped Back Plate for Maximum Excursion
• Vented Pole Piece
• Vented Basket
• Single 2" Voice Coil
• Signature Cerwin-Vega Bass
• Top-mount depth: 5.25"
• Cutout diameter: 10.82"
• Sensitivity: 85.5 dB

Amplifier Features:

• XED Series Class D Monoblock Amplifier
• RMS Power Rating:
  • 4 ohms: 200 watts x 1 channel
  • 2 ohms: 300 watts x 1 channel
• LED Power/Protect Light
• Wired remote bass level control included
• Speaker-level hi-inputs
• Input sensitivity:
  • Low level: 250mV - 6.0 volts
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: 85 dBA
• Variable low-pass filter: 30 - 250 Hz
• Subsonic filter: 10 - 50 Hz
• Variable Bass Boost: 0 - 12 dB
• 4 AWG Gauge power and ground wiring is recommended for installation.
• Dimensions: 4.7" W x 6.3" L x 1.8" H

Enclosure Features:

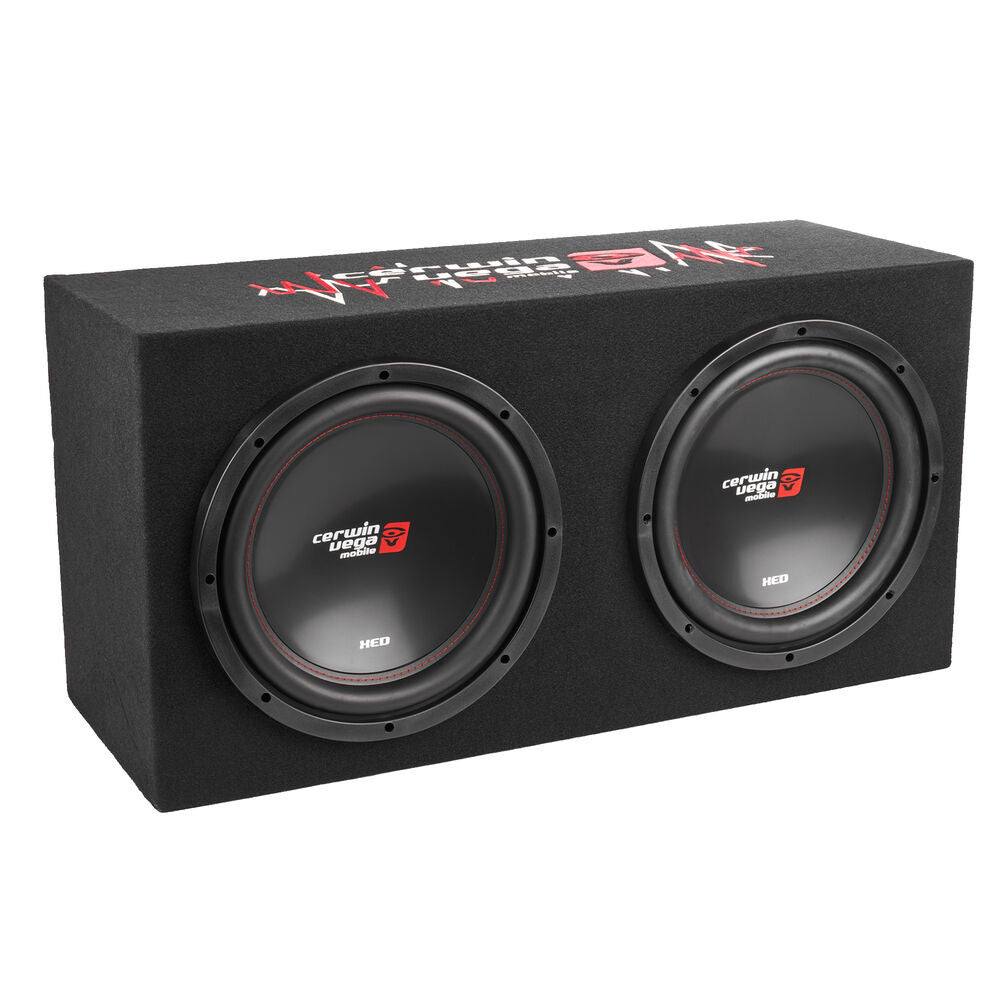

• Dual 12" Sealed enclosure
• Subwoofer mounting depth: 5.23"
• Subwoofer cutout diameter: 10.82"
• 3/4" MDF construction
• Automotive grade carpet cover
• Factory embroidered Cerwin-Vega logo design
• Total box volume: x.x cubic feet

Specifications:

Subwoofer Amplifier Power Specifications:

• RMS Power @ 4 ohms: 200 watts x 1 channel
• RMS Power @ 2 ohms: 300 watts x 1 channel

Amplifier Specifications:

• Amplifier Class: D
• Number of Channels: 1 - Mono
• Maximum Input Gauge Size: 4 AWG
• THD at Rated RMS Power:< 0.1%
• Speaker Level Inputs: Yes
• Preamp Outputs: Mono output
• Built-in Crossover: Low-Pass (LP), Subsonic
• Low-Pass Crossover Frequency: 30- 250 Hz
• Signal-to-Noise Ratio: 85dB
• Subsonic Filter: 10 - 50 Hz
• Remote bass/level controller: Yes
• Fuse Rating: 20A x 1
• CEA-2031 Compliant: No

Subwoofer Specifications:

• Subwoofer Size: 12"
• RMS Power Handling: 150 watts
• Total RMS Power Handling: 1000 watts
• Peak Power Handling: 1000 watts
• Total Peak Power Handling: 2000 watts
• Woofer Surround: High Roll Foam
• Woofer Composition: Parabolic Poly
• Sensitivity: 85.5 dB
• Subwoofer Design: Round / Circle

Enclosure Specifications:

• Box Type: Sealed
• Number of Subs/Speakers: 2
• Box Style/Shape: Hatchback Style, Angled Back
• Wood Thickness: 3/4"
• Box Exterior Color: Black
• Box Finish: Carpet
• Final Wired Impedance: 2-ohm
